How Plaud Embedded Works

Multiple SDKs and APIs can be a lot to juggle. Don’t worry! We’ll walk through the steps you need to know to implement Plaud Embedded end-to-end.

The End-to-End Flow

In general, integrating with Plaud Embedded end-to-end is done through the following steps:

Provision Partner Tokens and User Tokens with the Authentication API

Use the Embedded SDK to bind your users' Plaud devices to your mobile app

Sync audio files from your users' Plaud device to your application using the Embedded SDK

(Optional) Upload files to Plaud's cloud storage

Trigger transcription tasks and retrieve processed transcripts with the Transcription API

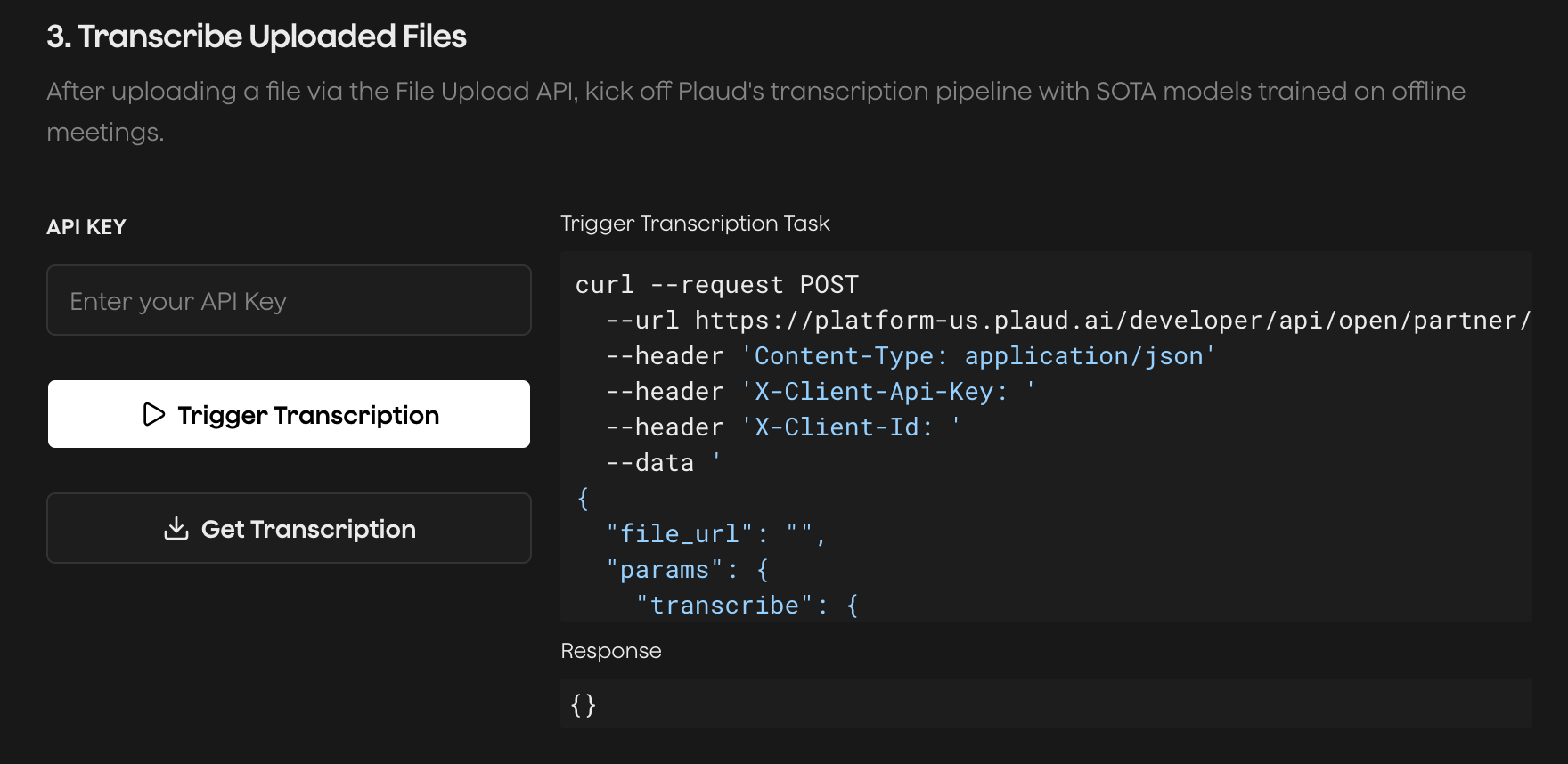

Try the Plaud Embedded API Playground to see every step of the transcription process with your own client credentials.End-to-end, from authentication to recording audio to uploading to transcription.

Let’s go through each step.

Retrieving Tokens and Authenticating

Plaud Embedded’s SDK and APIs have two different authentication methods to be aware of:

User Token - user-level tokens with your user’s unique ID and minted with a Partner Token
Client ID & API Key - used for the Transcription API

A Partner Token is an application-level token. A single Partner Token can mint multiple User Tokens.Use the Authentication APIs to retrieve your Partner Tokens and mint User Tokens.

Exchanging client credentials for Partner Token

POST https://platform-us.plaud.ai/developer/api/oauth/partner/access-token
Authorization: Basic base64(client_id:secret_key)
Content-Type: application/x-www-form-urlencoded

//Returns
{
  "access_token": "eyJhbGciOiJSUz...",
  "refresh_token": "eyJhbGci...",
  "token_type": "bearer",
  "expires_in": 3600
}

Minting User Token

POST https://platform-us.plaud.ai/developer/api/open/partner/users/access-token
Authorization: Bearer <partner_access_token>
Content-Type: application/json

{
  "user_id": "<your stable user id, 6-120 chars>",
  "expires_in": 86400
}

//Returns
{
  "access_token": "eyJhbGci...",
  "token_type": "bearer",
  "expires_in": 86400
}

Binding Plaud Devices to Your Mobile App

Binding Plaud Devices is the process of linking your users’ Plaud device to your mobile application. The reason we use the term “bind” is because devices can only be linked to one application at a time. When your application binds to your users’ Plaud devices, your partner/user credentials are used for encrypting, decrypting, and syncing your users’ data with your app. This is how your users’ data is kept secure and only syncs data with your application (not just any Plaud Embedded application).

Binding to Plaud devices using the Embedded SDK

// Configure Embedded SDK
private let customDomain = "platform-us.plaud.ai"

func configure(userId: String) {
    RecordingStore.shared.userId = userId
    PlaudDeviceAgent.shared.initSDK(
        userAccessToken: userAccessToken,
        customDomain: customDomain
    )
}

// Scan for Plaud devices
func startScan() {
    cachedBleDevices.removeAll()
    scannedDevicesSubject.send([])
    connectionStateSubject.send(.scanning)
    PlaudDeviceAgent.shared.startScan()
}

// Connect to Plaud devices via Bluetooth
func connect(_ device: ScannedDevice, userId: String) {
    guard let bleDevice = cachedBleDevices[device.serialNumber] else { return }
    connectionStateSubject.send(.connecting(device))
    PlaudDeviceAgent.shared.connectBleDevice(bleDevice: bleDevice, deviceToken: userId)
}

Syncing Files from Plaud Device to Your Mobile App

Plaud devices have their own storage and audio is stored on-device while recording. After a recording is finished, you must sync audio files from your users’ Plaud device to their mobile app. This can be done via Bluetooth Low Energy (BLE) or WiFi Fast Transfer.

WiFi Fast Transfer is ~10x faster. It works by opening a hotspot connection between your Plaud device and your users’ phone. WiFi Fast Transfer requires the HotSpot Entitlement when configuring your iOS app

Syncing files with BLE and WiFi Fast Transfer

// BLE Sync
PlaudDeviceAgent.shared.exportAudio(
    sessionId: file.sessionId,
    outputDir: outputDir,
    format: .wav,
    channels: 1,
    callback: callback
)

// WiFi Fast Transfer
PlaudDeviceAgent.shared.setDeviceWiFi(open: true)
// In bleWiFiOpen callback:
PlaudWiFiAgent.shared.bleDevice = BleAgent.shared.bleDevice
PlaudWiFiAgent.shared.connectWifi(ssid, password, 60)
// After wifiHandshake(status: 0):
PlaudWiFiAgent.shared.exportAudioViaWiFi(...)

(Optional) Uploading Files Using the File Upload API

The Transcription API accepts any publicly accessible audio URL. You can host your files on your own storage, or use Plaud’s File Upload API. If you choose to use Plaud’s managed S3 storage, the upload is done in 3 steps:

Generating presigned upload URLs to Plaud’s S3 storage
Uploading your audio files to the presigned upload URLs in chunks
Sending the chunk information to complete the multipart upload

Generating presigned upload URLs

POST https://platform-us.plaud.ai/developer/api/open/partner/files/upload/generate-presigned-urls
Content-Type: application/json
Authorization: Bearer <user_access_token>
{
  "filesize": 10485760,
  "filetype": "mp3"
}

// Returns
{
  "FileId": "file_xxx",
  "UploadId": "upload_xxx",
  "ChunkSize": 5242880,
  "Parts": [
    { "PartNumber": 1, "PresignedUrl": "https://plaud-bucket.s3.amazonaws.com/..." },
    { "PartNumber": 2, "PresignedUrl": "https://plaud-bucket.s3.amazonaws.com/..." }
  ]
}

Uploading chunks to presigned storage URLs

PUT [PresignedUrl]

[raw bytes of chunk]

// Returns
ETag: "abc123..."

Completing upload with the part mappings

POST https://platform-us.plaud.ai/developer/api/open/partner/files/upload/complete-upload
Content-Type: application/json
Authorization: Bearer <user_access_token>

{
  "file_id": "file_xxx",
  "upload_id": "upload_xxx",
  "part_list": [
    { "PartNumber": 1, "ETag": "\"abc123...\"" },
    { "PartNumber": 2, "ETag": "\"def456...\"" }
  ],
  "filetype": "mp3",
  "file_md5": "9e107d9d372bb6826bd81d3542a419d6"
}

// Returns
{
  "FileId": "file_xxx",
  "FileType": "mp3",
  "DownloadUrl": "https://plaud-bucket.s3.amazonaws.com/...",
  "FileMd5": "9e107d9d372bb6826bd81d3542a419d6"
}

Triggering and Pulling Transcriptions from the Transcriptions API

The Transcription API allows you to transcribe any file uploaded to Plaud’s storage in an asynchronous way.

Trigger a transcription task - behind the scenes, Plaud is running your uploaded audio file through noise reduction, speaker detection, language recognition, and other speech-to-text pipeline steps
Poll transcription status - use the Transcription API to check the status of a task, and on the SUCCESS status, the transcription data will be available.

Submit a transcription task

POST https://platform-us.plaud.ai/developer/api/open/partner/ai/transcriptions/
Content-Type: application/json
X-Client-Api-Key: [API_KEY]
X-Client-Id: [CLIENT_ID]

{
  "file_url": "<publicly accessible audio file URL>",
  "params": {
    "transcribe": { "language": "auto", "model": "plaud-fast-whisper" },
    "vad": { "decode_silence": false },
    "diarization": { "enabled": false, "return_embedding": false }
  }
}

// Returns
{
  "transcription_id": "task_exec_xxx",
  "status": "PENDING",
  "data": {}
}

Check and retrieve transcription

GET https://platform-us.plaud.ai/developer/api/open/partner/ai/transcriptions/[TRANSCRIPTION_ID]
X-Client-Api-Key: [API_KEY]
X-Client-Id: [CLIENT_ID]

// Returns
{
  "transcription_id": "task_exec_xxx",
  "status": "SUCCESS",
  "data": {
    "text": "Meeting started at 10am...",
    "language": "en",
    "duration": 1843,
    "segments": [
      {
        "start": 0,
        "end": 4.2,
        "text": "Meeting started at 10am.",
        "speaker": "Speaker 1"
      }
    ]
  }
}

That’s the general flow for Plaud Embedded apps! You’re now ready to get started implementing the Embedded SDK.

Starter App

For new builders to build on top of our iOS template with the Embedded SDK pre-implemented (Also a great reference)

Embedded SDK

For developers ready to jump in and implement the Embedded SDK in their existing mobile app
